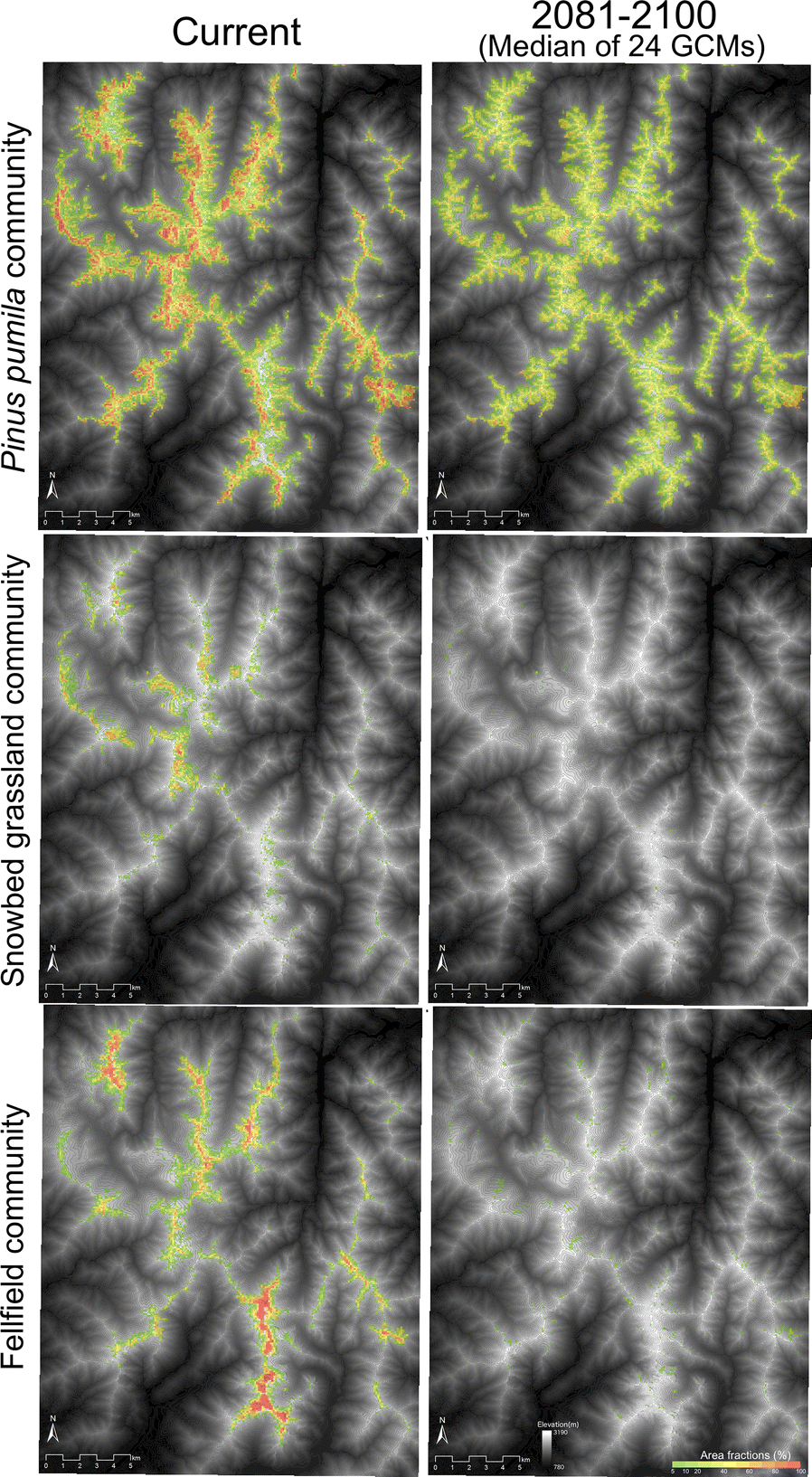

Fig. 5

Current and future area fractions of the three alpine plant communities calculated from sub-model B2. The future area fraction is represented by the median value of area fractions under 24 future climate scenarios. Gray lines show contours at intervals of 50 m
